High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed

High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed

  • High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed
  • High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed
  • High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed
High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed
Product Details:
Place of Origin: Ningbo China
Brand Name: NC97
Certification: ISO9001
Model Number: 97
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Customized
Delivery Time: 25 days
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs/Month
Contact Now
Detailed Product Description
Application: Machine Tool Base Material: Grey Iron HT200-300
Weight: 1-40 Tons Surface Finish: Shot Blasting, Painting
Standard: ASTM/DIN/BS/JIS/GB/AS
High Light:

gray iron casting process

,

green sand casting

High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed



Description



Machine tool castings also be called heavy castings, the standard is GB9439-88, the material is HT200-300, it’s divided into sand mold casting and special casting. The machine tool castings’ production is that the metal mixture is heated to melt, so that it has the fluidity, and then poured into the mold cavity with a certain shape, under gravity or external force (Pressure, centrifugal force, electromagnetic force etc.) the mold cavity is full filled by the liquid, form the machine tool casting (parts) after the liquid is cooled and solidified.



Milling machine tool bed casting using advanced manufacturing technology, machine performance, reliable structure, simple operation, convenient maintenance, widely used in mechanical processing industry of heavy-duty black, non-ferrous metal plane, the inclined plane and concave convex milling, has good performance to price ratio.



Features



1. Adjustable angle head, able to mill bevel face.

2. Universal lathe, with Drilling Boring feature.

3. Worktable and Head are controlled by Panel, Operates simply.

4. Increased weight of Vertical Post, makes Better Process Stability.

5. High accuracy, error within 0.05mm.

6. Adopt Double tempering Cast, no deformation.

7. Hand scraping, More smooth worktable and lathe Body.



Industry involved

Valve Parts (Bodies & Discs) / Pump Parts (Bodies & Covers) / Strainers (Bodies & Covers) / Housings / Adaptors / Automotive Parts



Product Basic Information



Material: HT200-300

Specification: 1500-4000mm

Hardness of the working surface: HB160-240

Production process: sand casting or centrifugal castings

Molding type: resin sand molding

Surface coating: pickling oil and plastic-lined or covered with anti-corrosion paint

Working temperature: (20±5)℃

Precision grade: 1-3

Packaging: Pallet or Customized



Process resin sand casting
Specification

1. Material: gray iron HT200-300

2. Standard: ASTM

3. Surface finish: shot blasting, painting, machining,etc.

4. Weight: 100~40000kgs

5. Maximum Size: 10000x8000x5000mm



Production facilities

1. Casting facility: resin sand production line, Electric furnace, heat treatment furnace, shot blasting room

2. Machining facility: CNC, boring machine, milling machine, lathe, etc.

Application Machine tool body
Quality Inspection spectrometer, tensile test machine, hardness test machine, metallographic microscope.

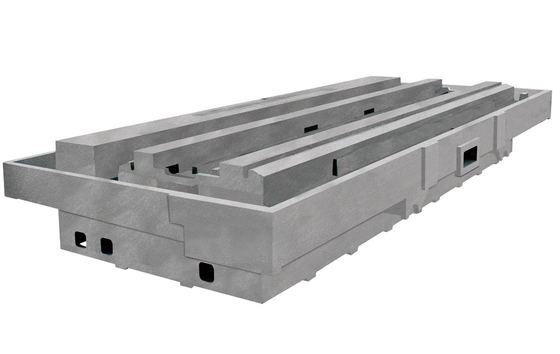

High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed 0

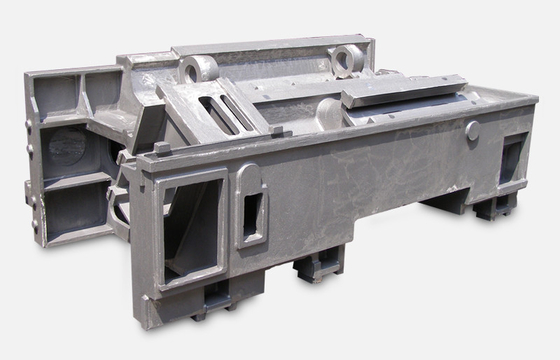

High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed 1


Factory Information



We are a renowned manufacturer, exporter and distributor of cast iron parts in China, for example cast iron surface plates, cast iron cubes, cast iron angle plates, T-slots cast iron ground rails, cast iron V-blocks, machinery casting, cast iron surface plate accessories, etc.

Experience and Diligence are key to help us to set up business relationship with customers over the world.

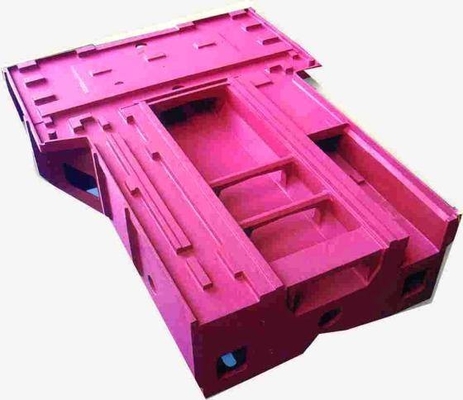

High Density Heavy Casting Grades Cast Iron Milling Machine Tool Bed / Lathe Bed 2



Our Service



We have a strong and highly efficient R&D team which can design and make OEM/ODM products according to your ideas and samples. All of our operations are strictly compliant with ISO 9001: 2008 guidelines, for high quality products with good service, CAMI is the best choice.



Quality Assurance



Physical and Chemical Inspection Report, Metallographic Examination, DIN Inspection Report, and Customer Requirements Reports. (Third Party inspection available upon customers requirements)



FAQ



Can you strictly follow the tolerance on drawing and meet the high precision?
A: Yes, we can, we can provide high precision parts and make the parts as your drawing.

Is it possible to know how is my product going on without visiting your company?
A: We will offer a detailed products schedule and send weekly reports with digital pictures and videos
which show the producing progress.

How is the guarantee?
A: We will inspect 100% before delivery. If any problem with the size itself and approved by ourselves, we will offer the new qualified products for you.
