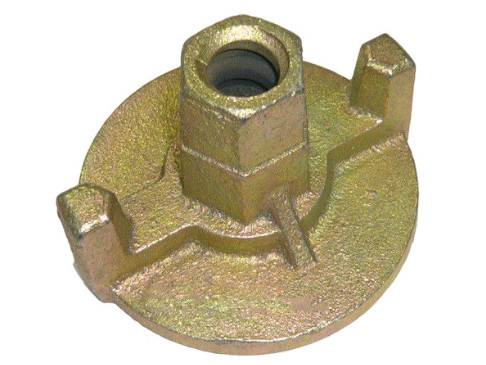

Galvanized Formwork Accessories Cast Iron Wing Nut for 15/17mm Tie Rod

Galvanized Formwork Accessories Cast Iron Wing Nut for 15/17mm Tie Rod

  • Galvanized Formwork Accessories Cast Iron Wing Nut for 15/17mm Tie Rod
  • Galvanized Formwork Accessories Cast Iron Wing Nut for 15/17mm Tie Rod
  • Galvanized Formwork Accessories Cast Iron Wing Nut for 15/17mm Tie Rod
Galvanized Formwork Accessories Cast Iron Wing Nut for 15/17mm Tie Rod
Product Details:
Place of Origin: Ningbo,China
Brand Name: NC471
Certification: ISO9001,SGS
Model Number: 471
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: Wooden Case
Delivery Time: 25 days
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Formwork Wing Nuts Material: Ductile Iron QT450-10
Size: 15/17mm Application: Concrete Construction
Surface Finish: Galvanized Weight: 0.45/0.60/0.65KG
High Light:

scaffolding fittings

,

formwork accessories

Galvanized Formwork Accessories Cast Iron Wing Nut for 15/17mm Tie Rod



Application



Formwork Anchor nuts are made of ductile cast iron , they are used together with tie rod and washer plate for concrete wall shuttering system. With various size and weight , our formwork anchor nuts can match different formwork tie rod. And when making tensile strength testing, usually, when the tie rod breaks, the anchor nuts still keeps well.



Specification



1. Item:single wing nut, butterfly wing nut,three anchor wing
2. raw material:ductile steel or forged carbon steel
3. Standard: DIN 315
4. Certification: ISO9001, SGS, CTI, ROHS
5.Diameter:70mm,80mm,90mm,100mm,110mm
6.Suitable for tie rod:15/17mm,20/22mm,10/12mm
7.Unit weight:0.28--0.73kg or as per customer's require
8.Surface:silver or golden cold galvanized
9.Tensile resistance:90-190KN





Galvanized Formwork Accessories Cast Iron Wing Nut for 15/17mm Tie Rod 0



Any Related Components

1 Scaffolding:

We can supply you: Kwikstage scaffolding and accessories, Ringlock scaffolding and accessories, Cup lock scaffolding and accessories; Frame scaffolding and accessories and Four-way scaffolding and accessories.

2 Couplers/Clamps:

The couplers we can manufacture include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.

3 Props

Quality shoring props of different specifications can be manufactured in our factory.

4 Others

We can also manufacture fences, ladders, steel trays and other related products that are needed in the construction of scaffolding.
