Post Tensioning Prestressing Round Anchor For Building And Bridge Concrete

Post Tensioning Prestressing Round Anchor For Building And Bridge Concrete

  • Post Tensioning Prestressing Round Anchor For Building And Bridge Concrete
  • Post Tensioning Prestressing Round Anchor For Building And Bridge Concrete
  • Post Tensioning Prestressing Round Anchor For Building And Bridge Concrete
Post Tensioning Prestressing Round Anchor For Building And Bridge Concrete
Product Details:
Place of Origin: Ningbo,China
Brand Name: NC810
Certification: ISO9001,CE,SGS
Model Number: 810
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-50
Packaging Details: Crate
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 60,000 pcs per month
Contact Now
Detailed Product Description
Application: Post Tension/ Prestressing Construction Type: Round
Hardness: Wedge:78-85HRA, Anchor Head: 25-36HRC Material: Wedge: 20CrMnTi, Anchor Head: 40CrMnTi Steel
Capacity: 1860Mpa Wedge Type: 2 Pieces/set
Cable Diameter: 15.24mm/12.7mm
High Light:

post tension accessories

,

prestressed anchorage

Post Tensioning Prestressing Round Anchorage for Building and Bridge Concrete



Description



The anchoring device used in prestressed concrete, is in post-tensioned structure or component, in order to keep the tendons of tension and passes it to the interior of the concrete anchor tool, also known as Flat anchor head.



Anchor Grips Features:
1. 3.8mm, 4mm, 5mm, 7mm, 9mm, 15mm and so on
2. Lock for steel wire for precast concrete line
3. Good price, durable quality, recycle use



Anchor Grips Usage:
This kind of anchorage is used in pre-tensile production, used for different size of steel wire in precast hollow core slab factory, beam and lintel making factory and so on.



Applications:
1. Used in pre-tension or post-tension for concrete constructions as building materials
2. Used in the upper plates of bridges
3. Used PC panels, high-pressure concrete water pipes, marine structures, towers and runways.
4. Used for multi-storey industrial/commerial/residential buildings, stadiums, coal mines and etc



Specification



Product Name Prestress Anchorage
Model number VLM13(15)
Material Wedge: 20CrMnTi, Anchor head: 40CrMnTi steel, Anchor bearing plate: HT200
Hardness Wedge:78-85HRA, Anchor head: 25-36HRC
Steel strand's diameter 12.7mm/15.2mm
Wedge type 2 Pieces/set
Certificate ISO, SGS
Packing Free fumigation wooden case
Produce Standard Anchor wedge:Up to GB/T3077-2015, Anchor head: Up to GB/T3077-2015, Anchor bearing plate: Up to
GB/T9439-88

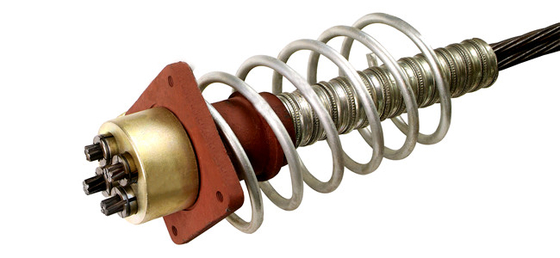

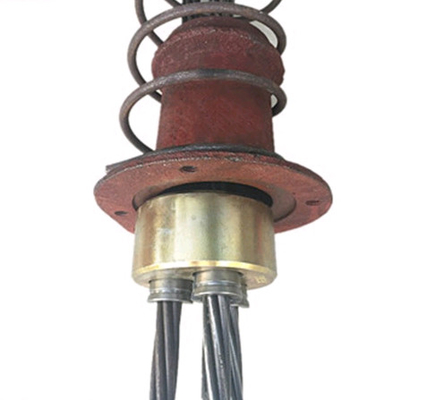

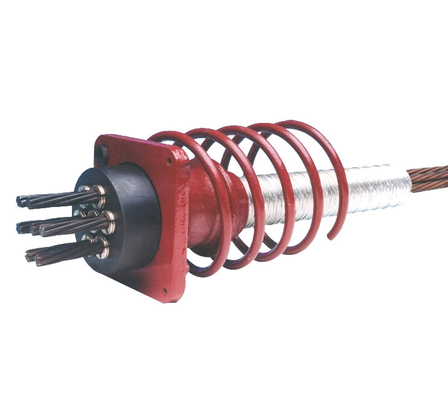

Full set including anchor head, wedge, bearing plate, spiral reinforcement.
Test Metallographic Analysis and Testing of magnetic particle flaw detection



Post Tensioning Prestressing Round Anchor For Building And Bridge Concrete 0

Post Tensioning Prestressing Round Anchor For Building And Bridge Concrete 1





Geometry size : Accordance with the requirements of the drawings design. Hardness: working anchor head :60-108HRB(5-25HRC); wedge:74.5~85HRA(56-65HRC) Material: working anchor head :40Cr GB/T3077-1999 OR 45#GB/T699-1999 ; wedge: 20CrMnTi-GB/T3077-1999; anchor spacer:HT200 GB/T9439-2010; spiral reinforcement: Q235 GB/T700-2006 Static load test: Conform to the GB/T14370-2007 standard article 5.5.1.

FAQ

Q: Can the Buyers Visit the Factory? post tension anchor
A: Yes. We all think the best way to guarantee the quality of products.In some condition we could offer a Sample for the customer if you pay for the express cost

Q: What is The Payment way? post tension anchor
A: Both T/T payment and irrevocable L/C at sight. For the T/T payment, There has 30% prepayment in advance and the balance payable against copy of B/L.

Q: If accept OEM service to made product as per customer offering drawing?
A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan
